EntitySystem Class Reference

A class representing a system that processes groups of Entity in an EntityEngine. More...

#include <EntitySystem.hpp>

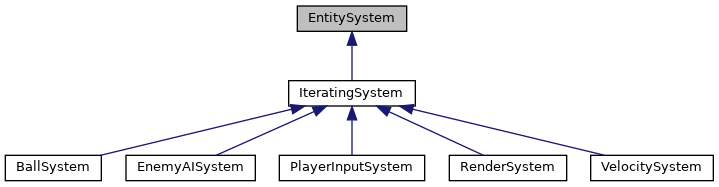

Inheritance diagram for EntitySystem:

Public Member Functions
	EntitySystem ()
	Construct a new default EntitySystem. More...
	EntitySystem (const std::shared_ptr< EntityFamily > &family)
	Construct a new EntitySystem that acts on a specified family. More...
virtual void	engineEntityAdded (const std::shared_ptr< Entity > &entity)
	Performs any operations required after an entity has been added to an EntityEngine the system is a part of. More...
virtual void	update (const sf::Time deltaTime)=0
	Performs any operations necessary in routine processing. More...

Protected Member Functions
virtual std::map< int, std::shared_ptr< Entity > >	getEntities () const
	Get the Entities in the system. More...

Detailed Description

A class representing a system that processes groups of Entity in an EntityEngine.

An abstract class to be extended by specific implementations.

Constructor & Destructor Documentation

EntitySystem() [1/2]

EntitySystem::EntitySystem

(

)

Construct a new default EntitySystem.

This creates an EntitySystem that processes all Entities added to the EntityEngine if EntitySystem::engineEngineEntityAdded is not overridden.

EntitySystem() [2/2]

EntitySystem::EntitySystem

(

const std::shared_ptr< EntityFamily > &

family

)

Construct a new EntitySystem that acts on a specified family.

Parameters

family

The family of entities that this system will act on. The EntitySystem implementation of EntitySystem::engineEntityAdded adds all entities to the system for which this family's implementation of EntityFamily::isInFamily returns true.

Member Function Documentation

engineEntityAdded()

virtual void EntitySystem::engineEntityAdded ( const std::shared_ptr< Entity > &  entity )

virtual

Performs any operations required after an entity has been added to an EntityEngine the system is a part of.

The default implementation adds the Entity to the Entities property (EntitySystem::getEntities) if the default constructor was called or the Entity is in the family provided to the family constructor.

Parameters

entity

The Entity recently added to the EntityEngine.

getEntities()

virtual std::map<int, std::shared_ptr<Entity> > EntitySystem::getEntities ( ) const

protectedvirtual

Get the Entities in the system.

Returns

std::map<int, std::shared_ptr<Entity>> A mapping of IDs to the entity that has those IDs for the entities that are part of this system.

update()

virtual void EntitySystem::update ( const sf::Time  deltaTime )

pure virtual

Performs any operations necessary in routine processing.

This method is pure virtual in EntitySystem.

Parameters

deltaTime

The time that has passed since update() was last called.

Implemented in IteratingSystem.

---

The documentation for this class was generated from the following file:

• /home/nathan/Code/SimpleCppGame/build/_deps/jupiter-engine-src/include/entity/EntitySystem.hpp
